Precision moulded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction.Can be fitted with a shackle in either of two planes to allow correct alignment of the block.
| Sheave Ø | 20 mm |
|---|---|
| Max. Rope Ø | 6 mm |
| M.W.L. | 250 kg |
| B. L. | 550 kg |
| Weight | 18 g |

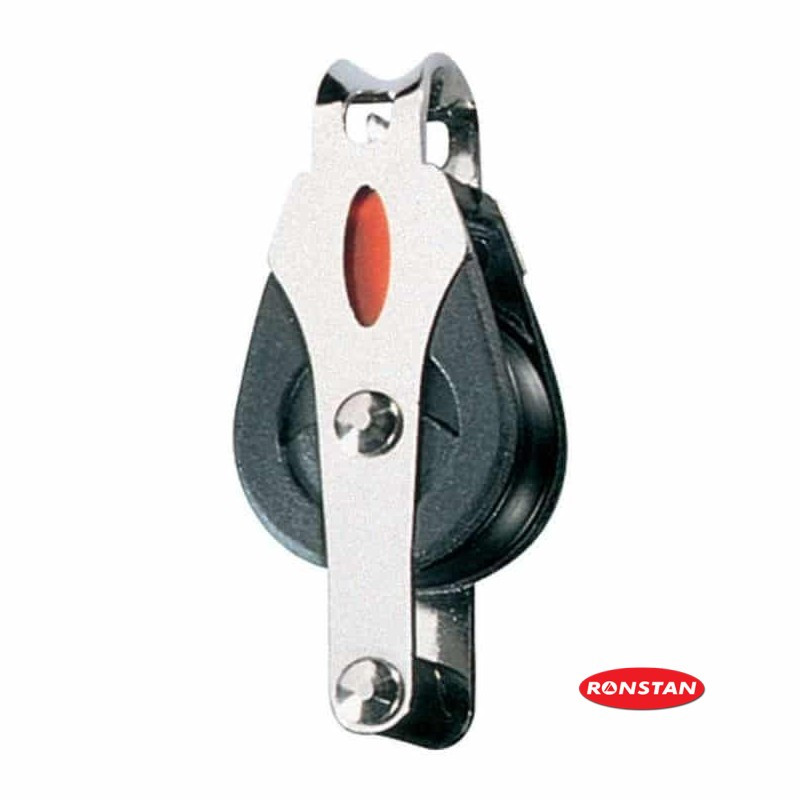

Single block with shackle Pulley Ø20 in UV-resistant acetate on stainless steel ball bearings. UV reinforced nylon cheeks with 316 stainless steel structure for control lines, cunningham, vang on dinghies and catamarans
